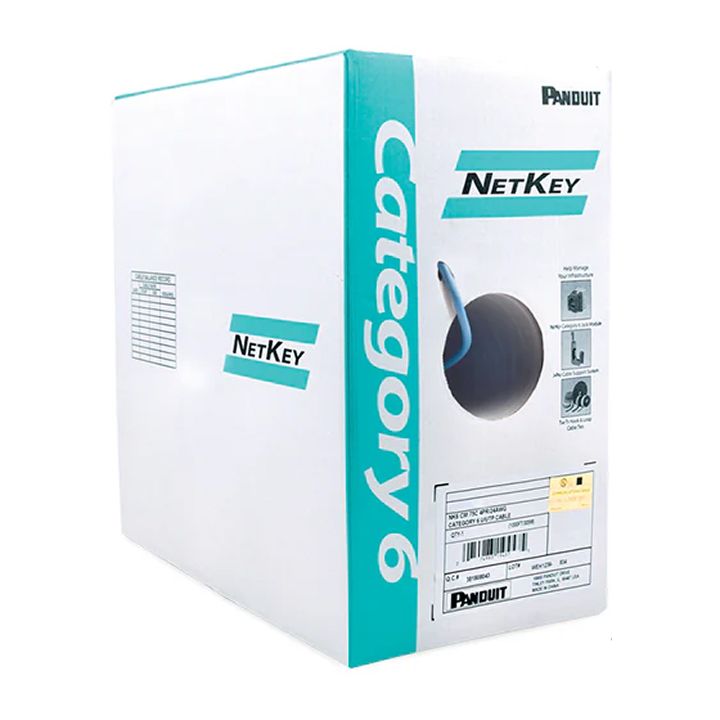

Cáp mạng panduit category 6 UTP
Category 6, PVC (CM), 4-pair, U/UTP, copper cable. Blue color
SKU: NUC6C04BU-FE
2,900,000 VNĐ
| Note | Available in North America |
| Environment | Indoor |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Flammability Rating | CMR |
| Resistance Properties | Flame Retardant |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Nominal Cable Outside Diameter (In.) | 0.21 |
| Nominal Cable Outside Diameter (mm) | 5.3 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 50 |
| Maximum Installation Temperature (°F) | 122 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Sub Brand | Pan-Net® |
| Maximum Installation Tension (lb) | 25 |
| Maximum Installation Tension (N) | 110 |
| Bend Radius (In.) | 0.84 |
| Bend Radius (mm) | 21 |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Overall Length (m) | 305 |
| Conductor Gauge (AWG) | 23 |
| Insulation Material | Polyolefin |
| Insulation Diameter (In.) | 0.039 |
| Insulation Diameter (mm) | 0.99 |
| Maximum Voltage (V) | 80 |
| Standards Met | Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E with Channel Headroom Guarantee, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, UL 1666 and CSA FT-4, RoHS Compliant. |
| Color | Blue |
| Overall Length (ft.) | 1000 |
| Packaging Type | Easy Payout Carton |
| Product Type | Copper Cable |
| UPC | 07498322094 |
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 1.6806 |
| Std. Ctn. Qty. | 36000 |
| Std. Ctn. Volume (cf) | 60.5000 |
MSP: FLKL906
MSP: SP688-C
MSP: NKFPZ22LLLSM003
MSP: NKFPZ22LLLSM002
MSP: NKFPX2ELLLSM003
MSP: NKFPX2ELLLSM002
MSP: NKFP92ERLLSM003
MSP: NKFP92ERLLSM002
MSP: NKU6APC3MBU
MSP: NKU6APC2MBU
MSP: NKU6PC10MBU
MSP: NKU6PC5MBU
